LJ30型管、棒矫直机
| 序号 No |
参数名称 Parameter |
JGB30A | JGB30B |
| 1 | 矫直管子直径范围 Pipe OD(mm) | Φ6～Φ30 | Φ6～Φ30 |
| 2 | 矫直管子壁厚范围 Pipe WT(mm) | 0.8～5 | 0.6～5 |
| 3 | 矫直管子屈服强度 Pipe max.yield strength (N/mm2) | ≤420 | ≤420 |
| 4 | 矫直速度 Straighrening speed (m/min) | 30.5 | 21 |
| 5 | 矫直辊角度调整范围 Roller angle adjustment | 26°～33° | 26°～33° |
| 6 | 矫直辊喉径 Roller diameter (mm) | Φ115 | Φ115 |
| 7 | 160 | 160 | |
| 8 | 矫直辊距 Roller distance (mm) | 280 | 280 |
| 9 | 矫前允许弯曲度 Allowed bending degree before straightening (mm/m) | ≤30 | ≤30 |
| 10 | 一次矫整弯曲度 Straightening precision (mm/m) | ≤1 | ≤0.8 |
| 11 | 左右传动电机型号 Left-and-right transmission motor type | Y132S-6 | Y160M2-8 |
| 12 | 电动机功率 Motor power (kw) | 3×2 | 5.5×2 |
| 13 | 机器外形尺寸 Outline dimension (mm) | 2200×965×1710 | 2720×1480×1710 |
| 14 | 机器重量 Total weight (Kg) | 2600 | 4300 |

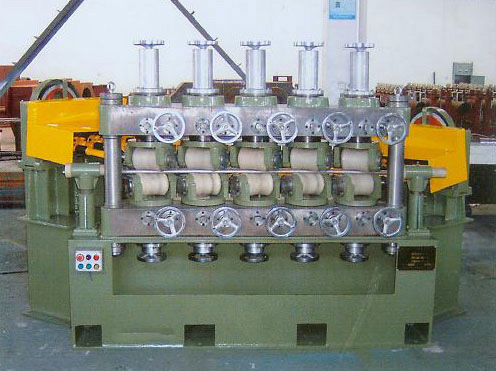

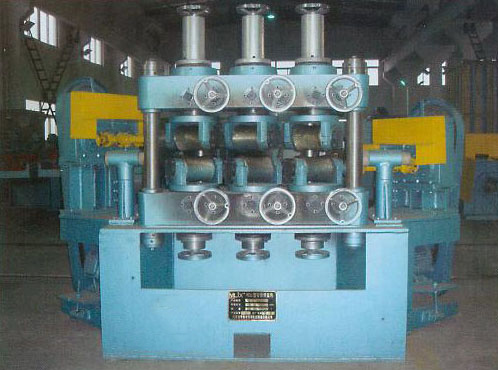

| 15 | 矫直辊配置型式 Disposal of roller | 2-2-2 | 2-2-2-2-2 |
